How to Obsolete a Record
How to obsolete a record in CMap PIM.
Navigate to Records

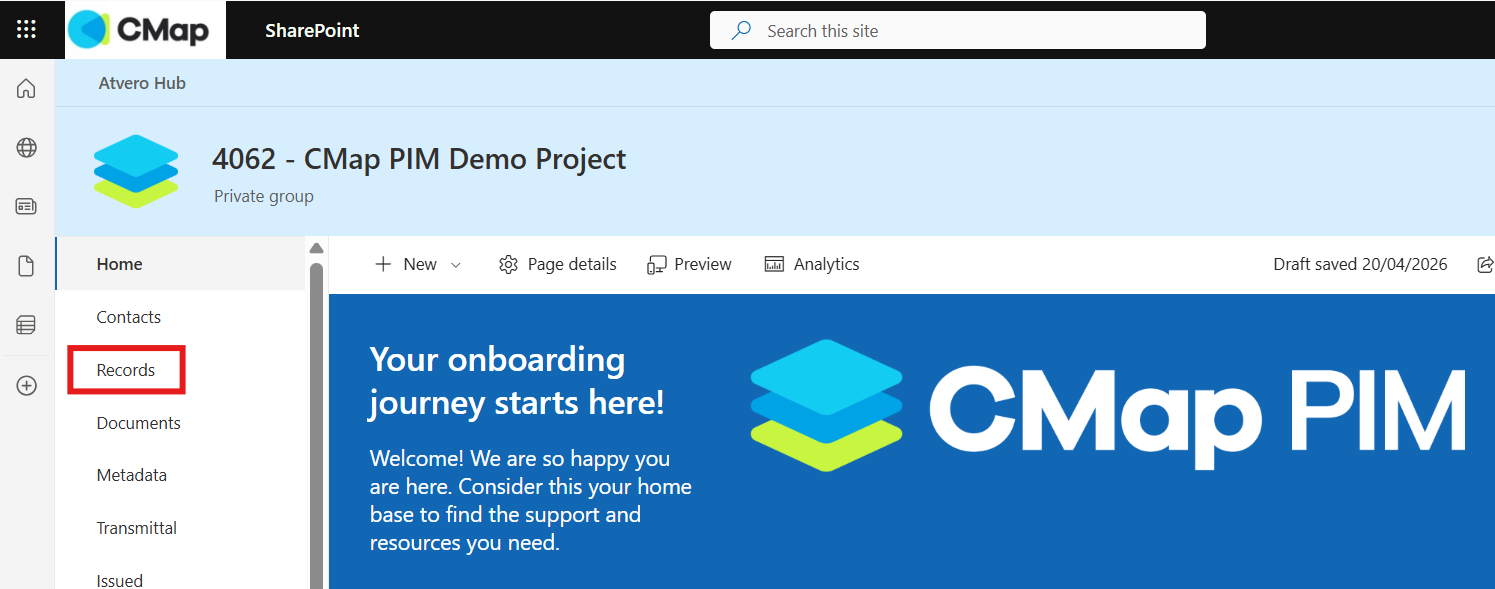

From the project homepage, click on Records in the left-hand menu.
Only project owners have the ability to obsolete a Record.

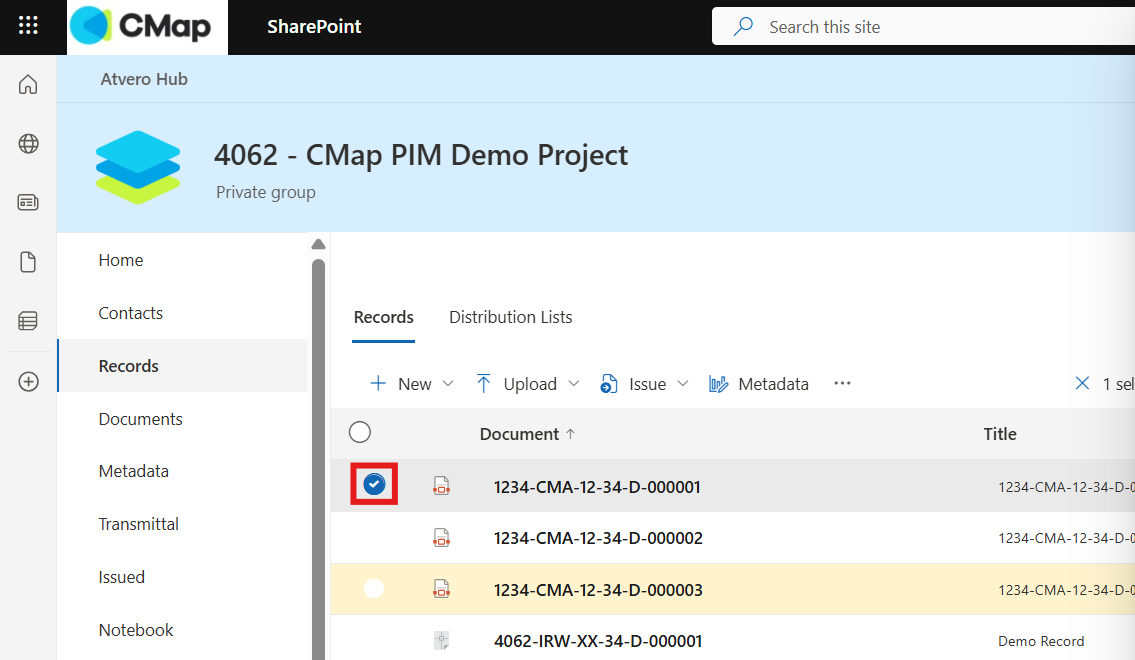

Select the Record you wish to obsolete.

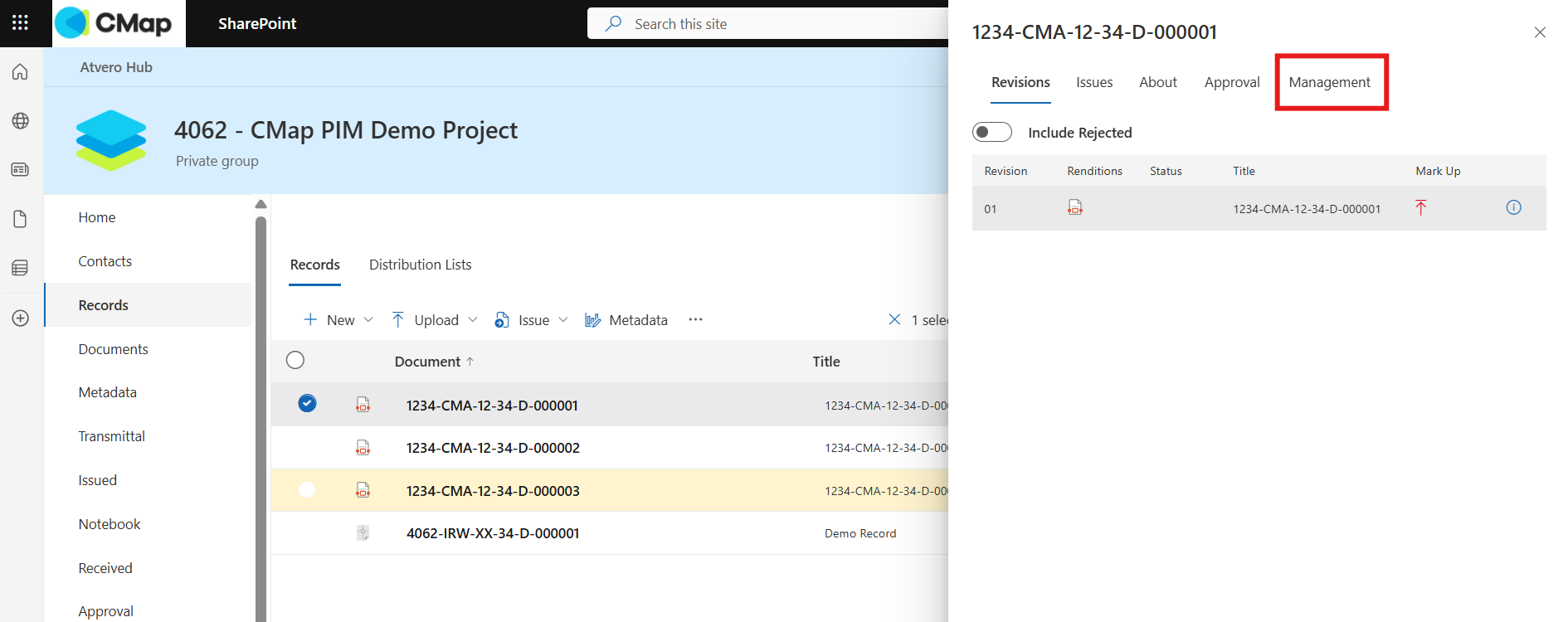

Click the 'Management' tab in the information panel that opens.

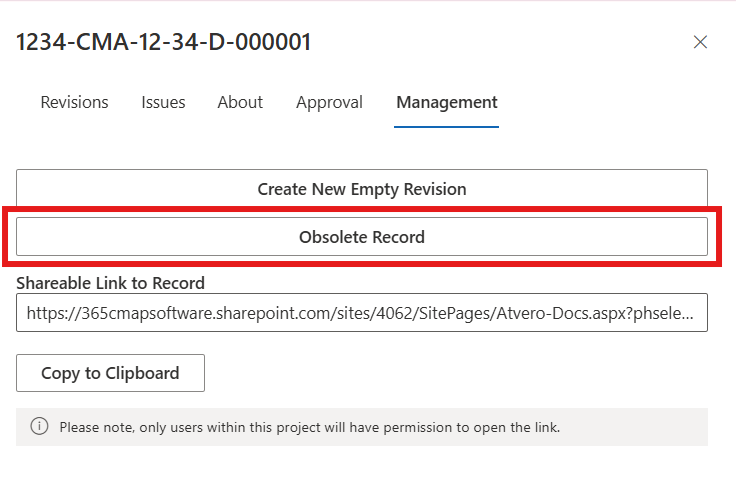

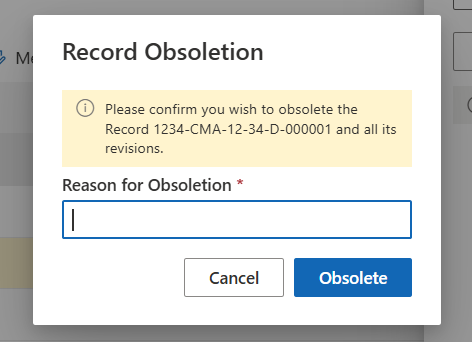

In management tab, click 'Obsolete Record' and then in the pop that appears provide your reason for obsoleting the Record.

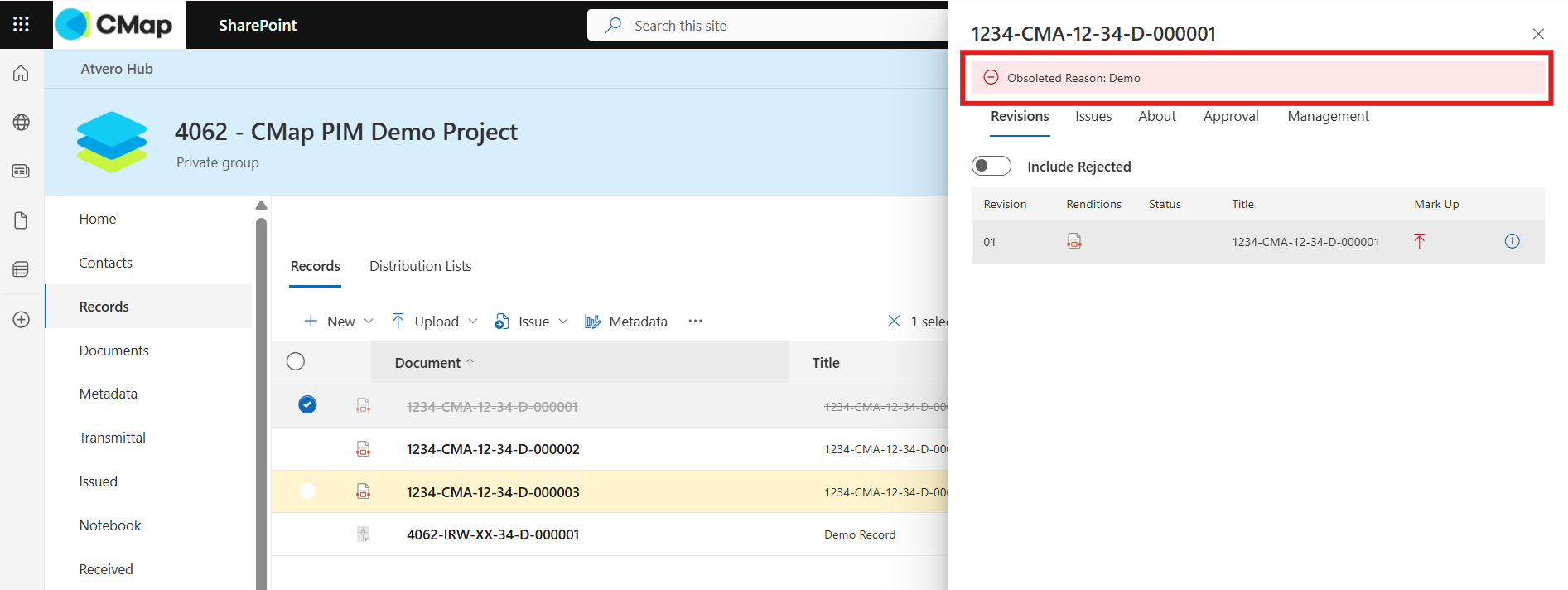

This obsoleted reason will then appear on the Record information panel. Obsoleted Records can still have revisions uploaded into them, but they will appear as struck out in the Records list.
You have now successfully obsoleted a Record.
