Viewing Issues
Introduction
How to view the Issues list in CMap PIM.
Navigate to Transmittals

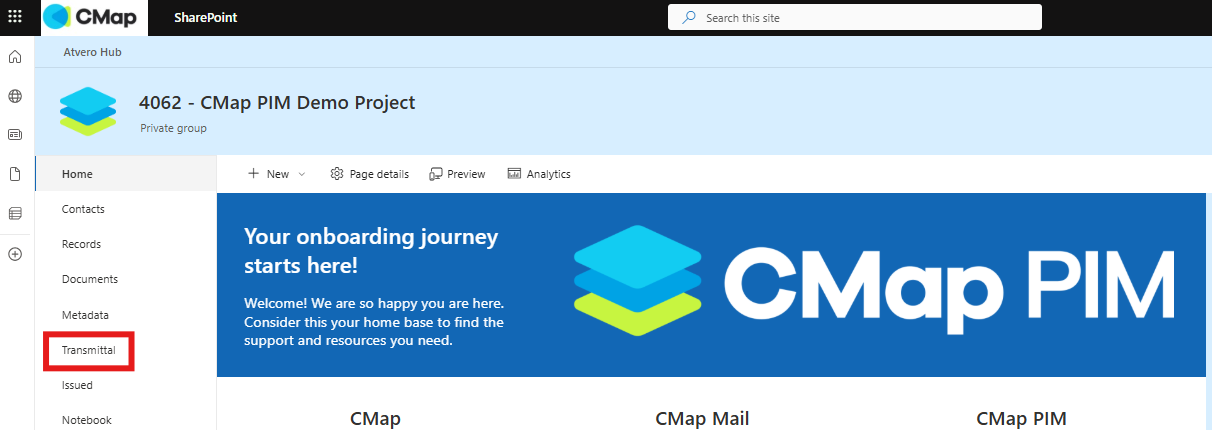

Inside your project, click the Transmittals menu item in the left-hand sidebar menu.
Issues List

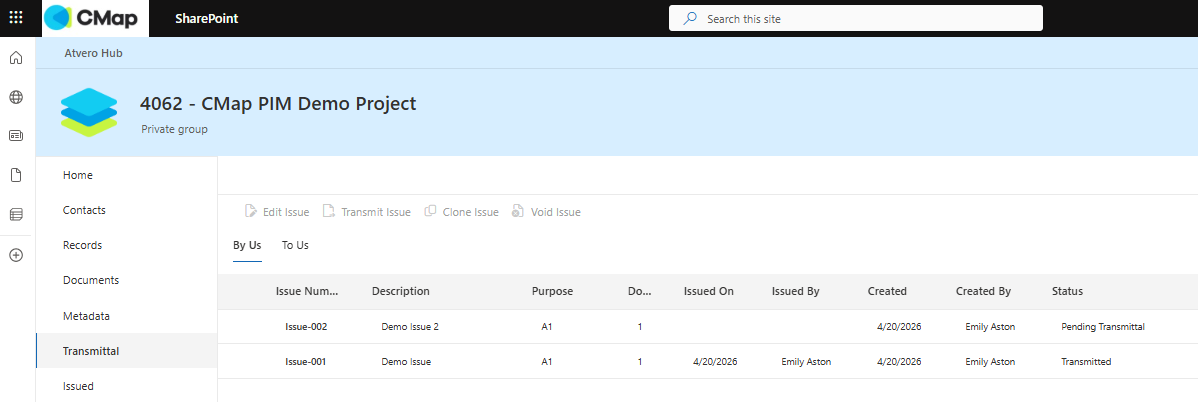

The Issues list is the list of internal issues created in CMap-PIM.
Each row represents an issue, and for each Issue we have:
•The issue title
•The issue description
•The issue status
•The date the issue was created
•The user who created the issue
•If transmitted, the date the issue was transmitted
•If transmitted, the user who transmitted the issue
If an issue is in the progress of being transmitted, you will see a process bar under the Status column on the far right.
If an issue has not been transmitted it will say Pending Transmittal.
If an issue has been transmitted successfully it will say Transmitted.
View an Issue

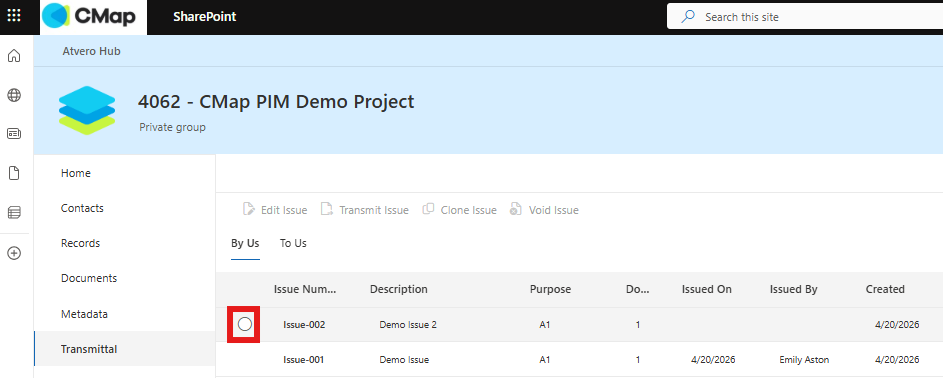

To view an issue, hover over the row of the issue you wish to view and click the grey circle to select.
Information Panel

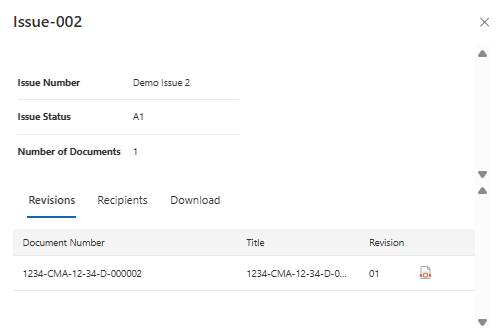

This will open the issue information panel.
Under the Issue tab you will see the revisions included in the issue, as well as the issue recipients and the method of transmittal.
Voided Issues

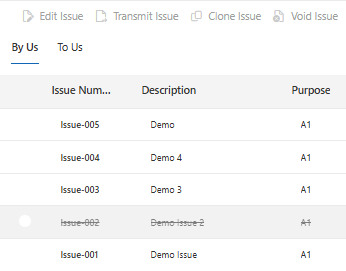

If an issue has been voided, it will appear struck through in the issues list.
Reason For Voiding

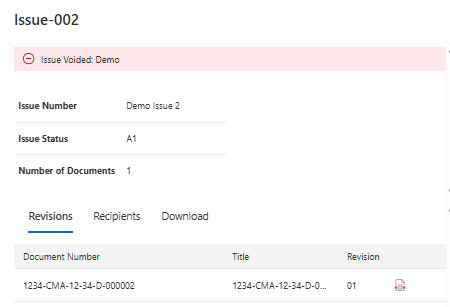

To view the reason for voiding, select the issue to open the information panel.
