Approving a Revision
Introduction
When a revision is first uploaded or its status is changed it is sent for approval. Only revisions that have been approved can be included in issues.
Approving from Approvals Page

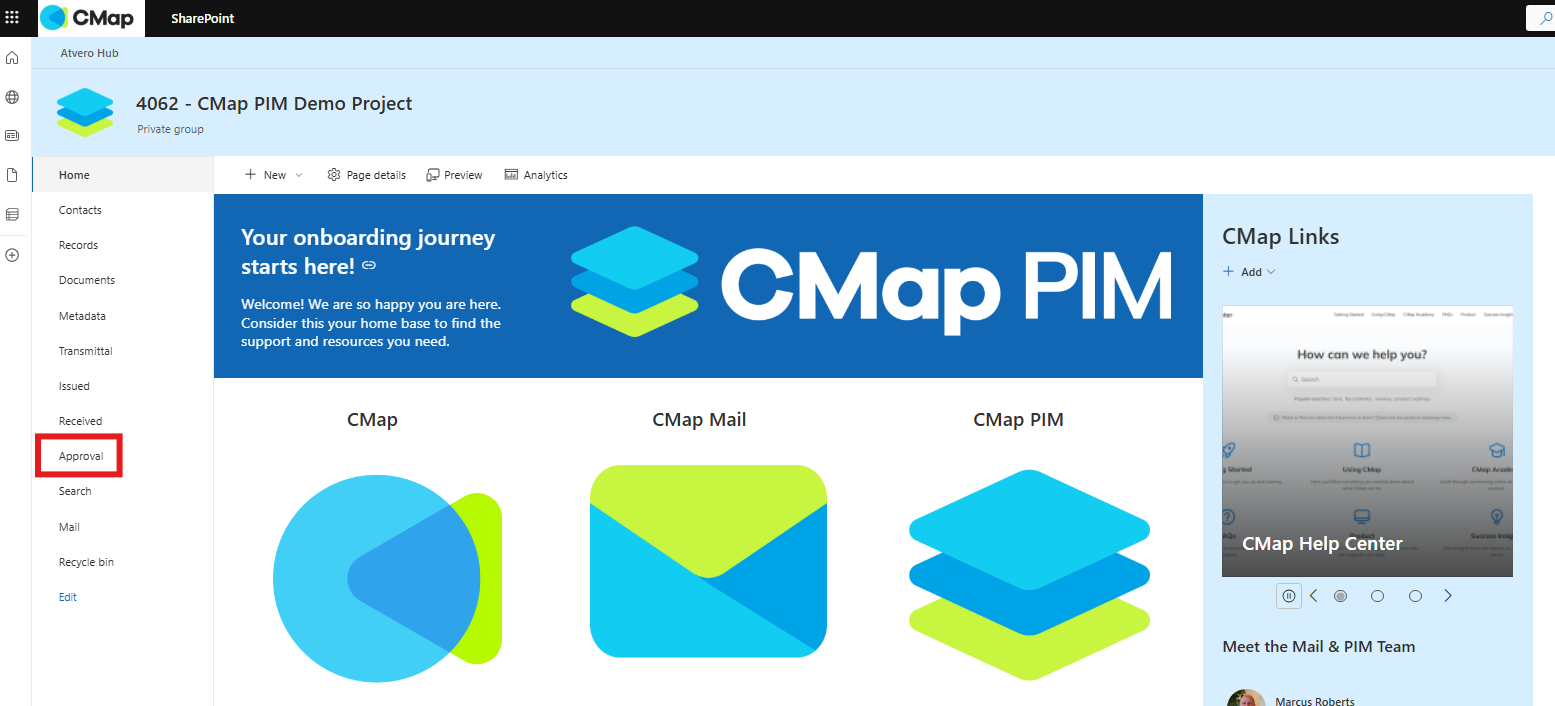

Inside your project, click the Approvals menu item in the led side bar menu.
Select Record

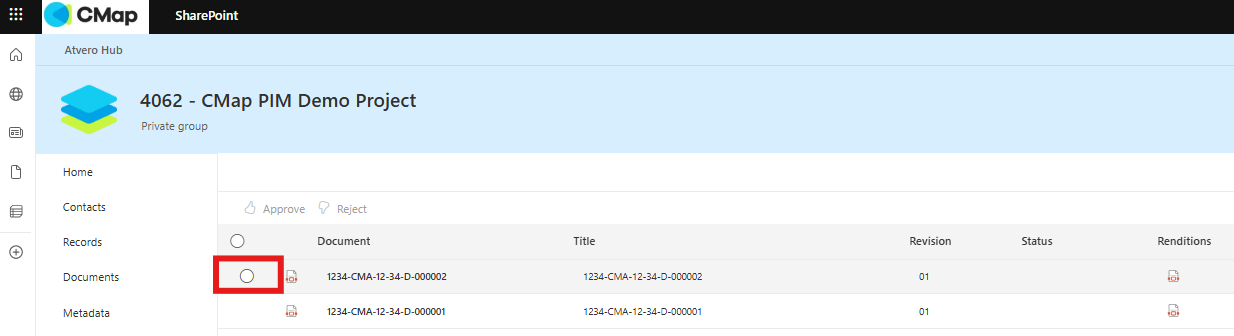

Hover over the row of the revision you wish to edit and click the grey circle to select the revision.
You can multi-select revisions to approve or reject more than one revision at a time.
You can use the Filters panel to find specific revisions more easily. Only project owners will be able to approve or reject revisions, by default.
Preview

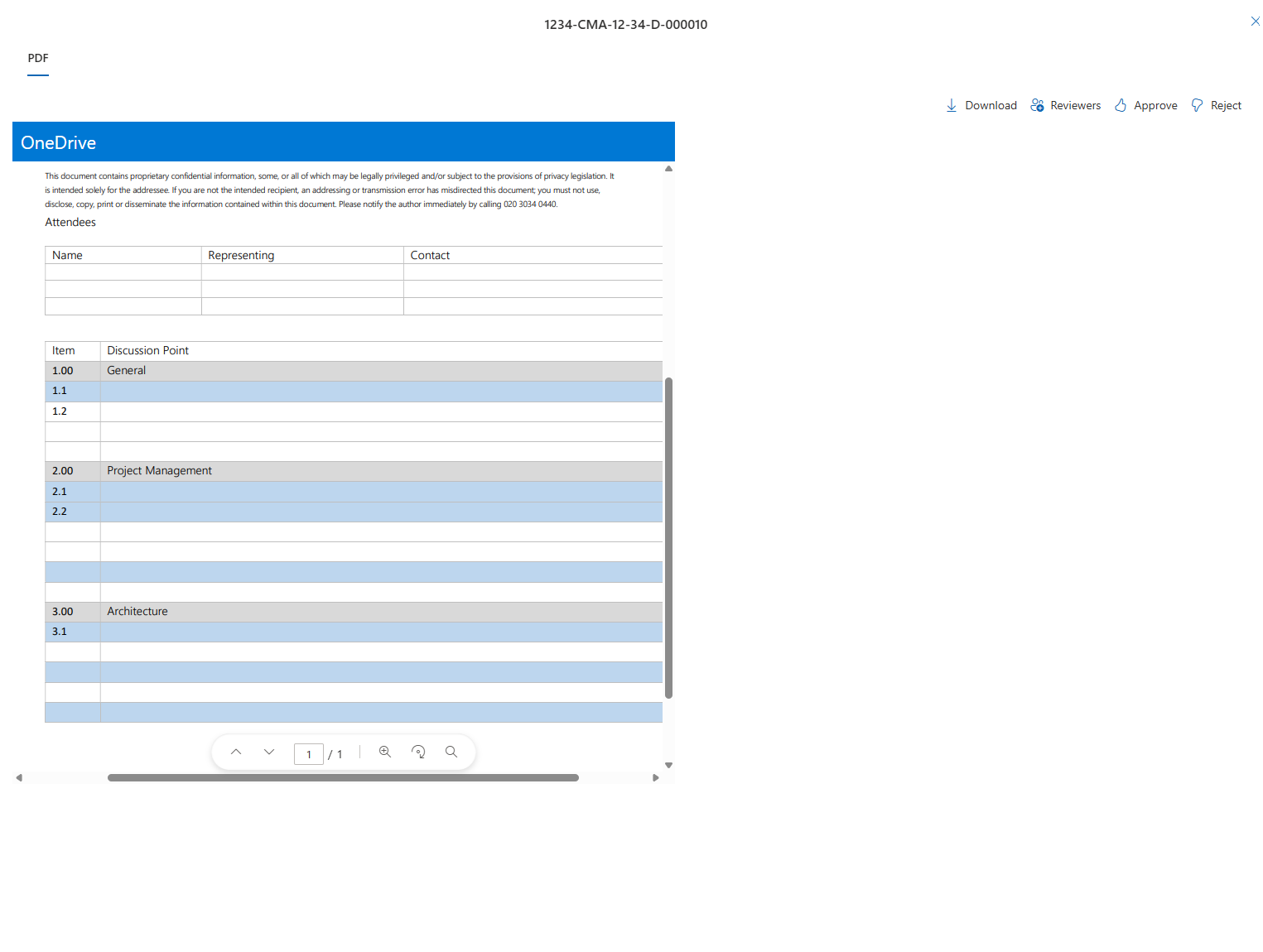

Select the revision you would like to view, once this is done the preview button in the top right with become available. If a revision has multiple renditions there will be multiple tabs to view the different previews.
Previews will change as any updates are made so you will always see the most up to date version. Not all previews are available for preview, but you can download a copy by clicking on the rendition icon you wish you download.
Approve

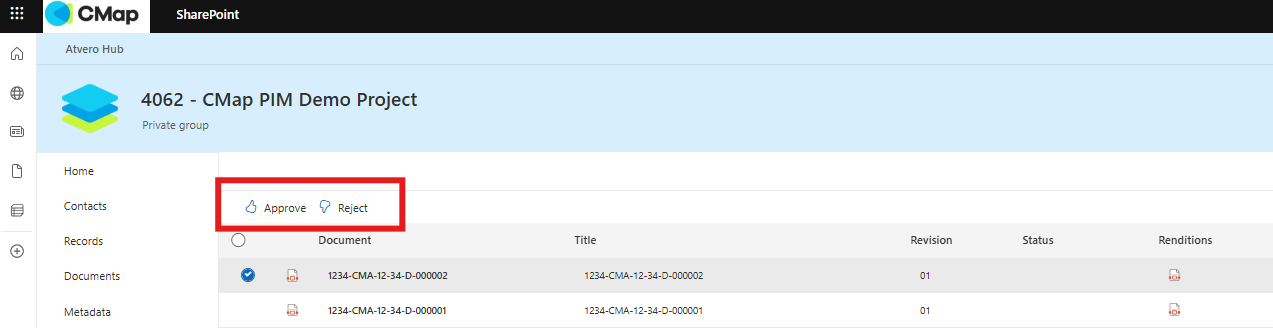

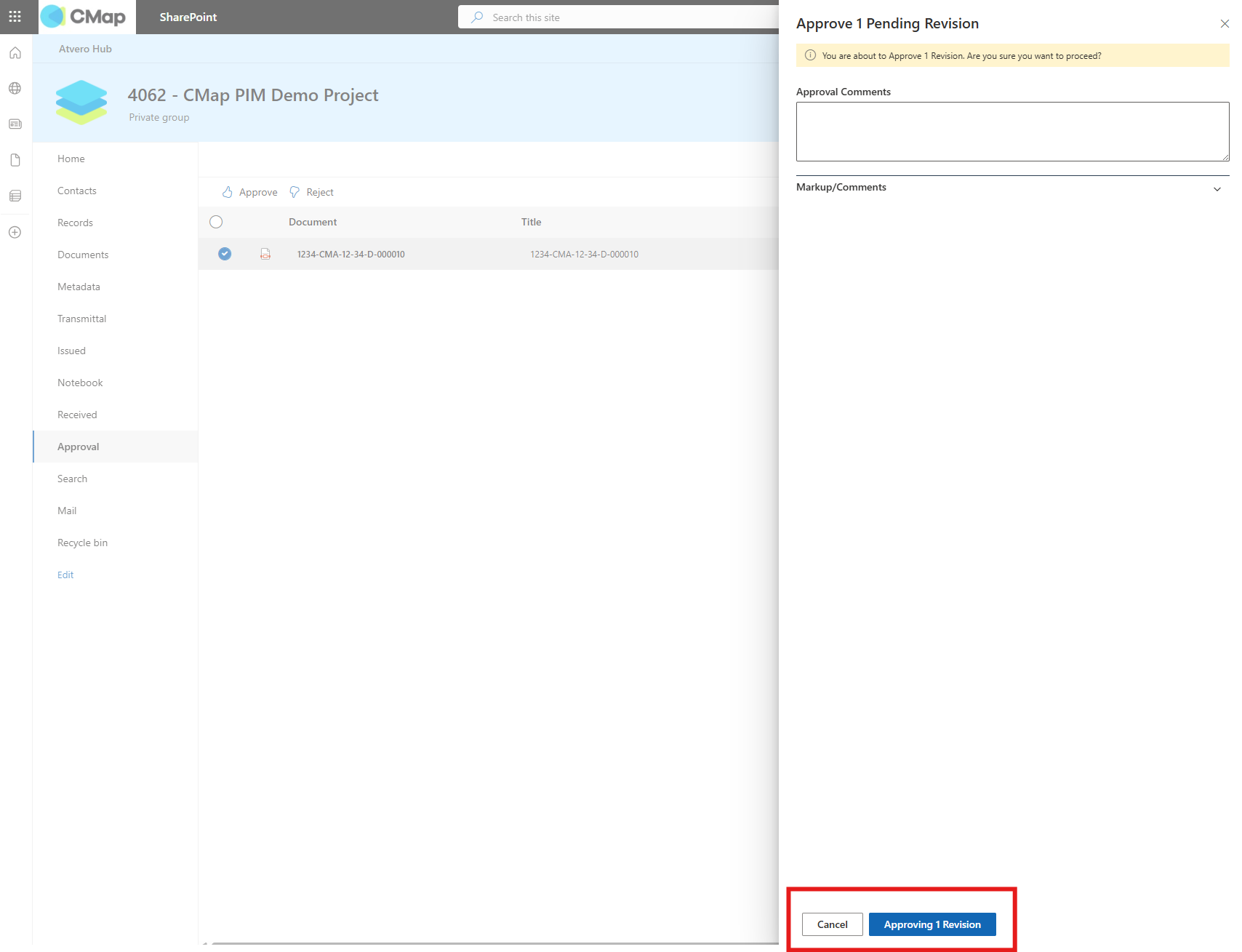

To approve a revision, click the Approve button located on the left hand side in the command bar. You will then be prompted to confirm your approval. Approving a revision cannot be undone.
Your revision has now been processed.
Rejecting a Revision

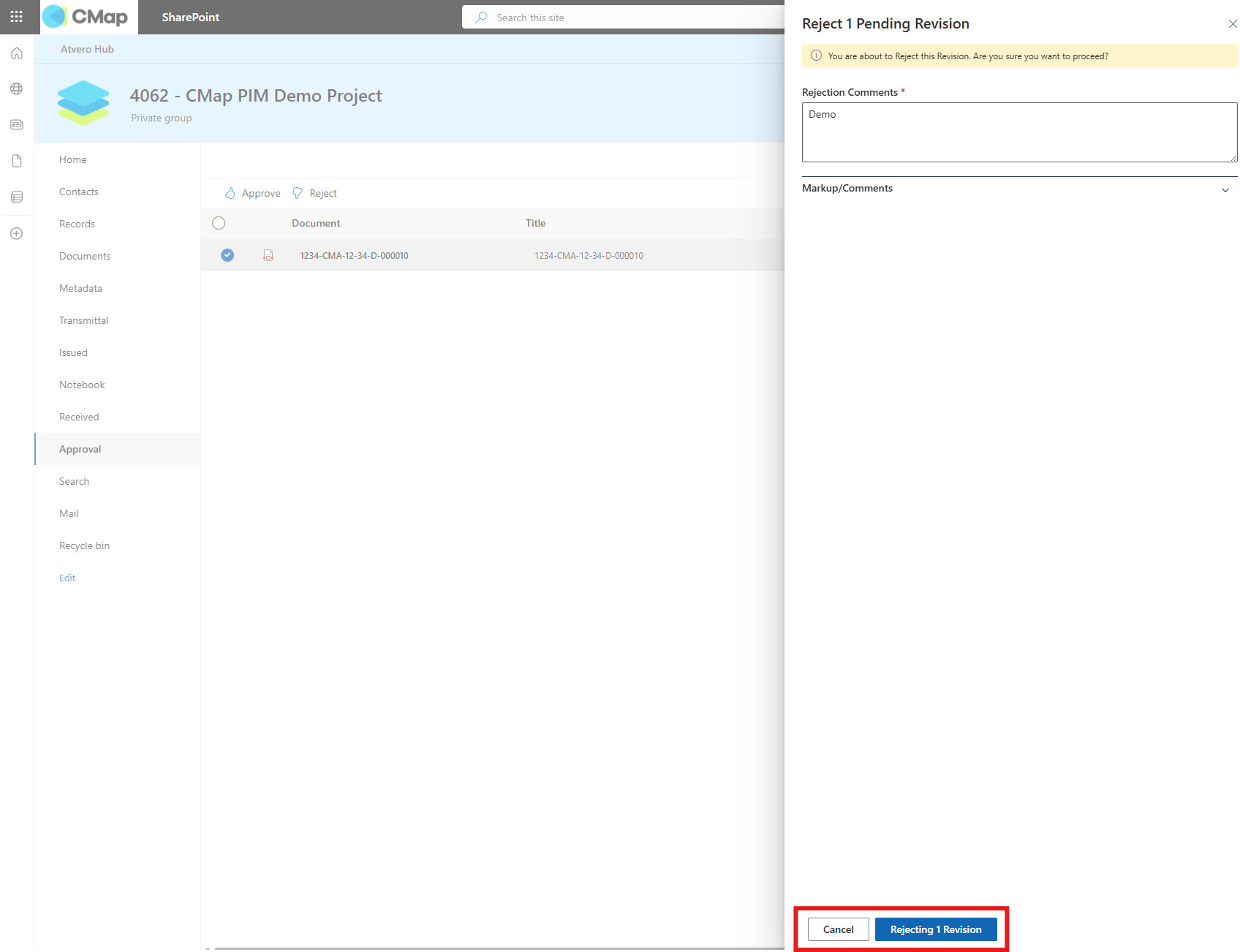

To rejecting a revision, click the Rejection button located on the left hand side in the command bar. You will then be prompted to confirm you're rejecting.
Approving from the Records Page

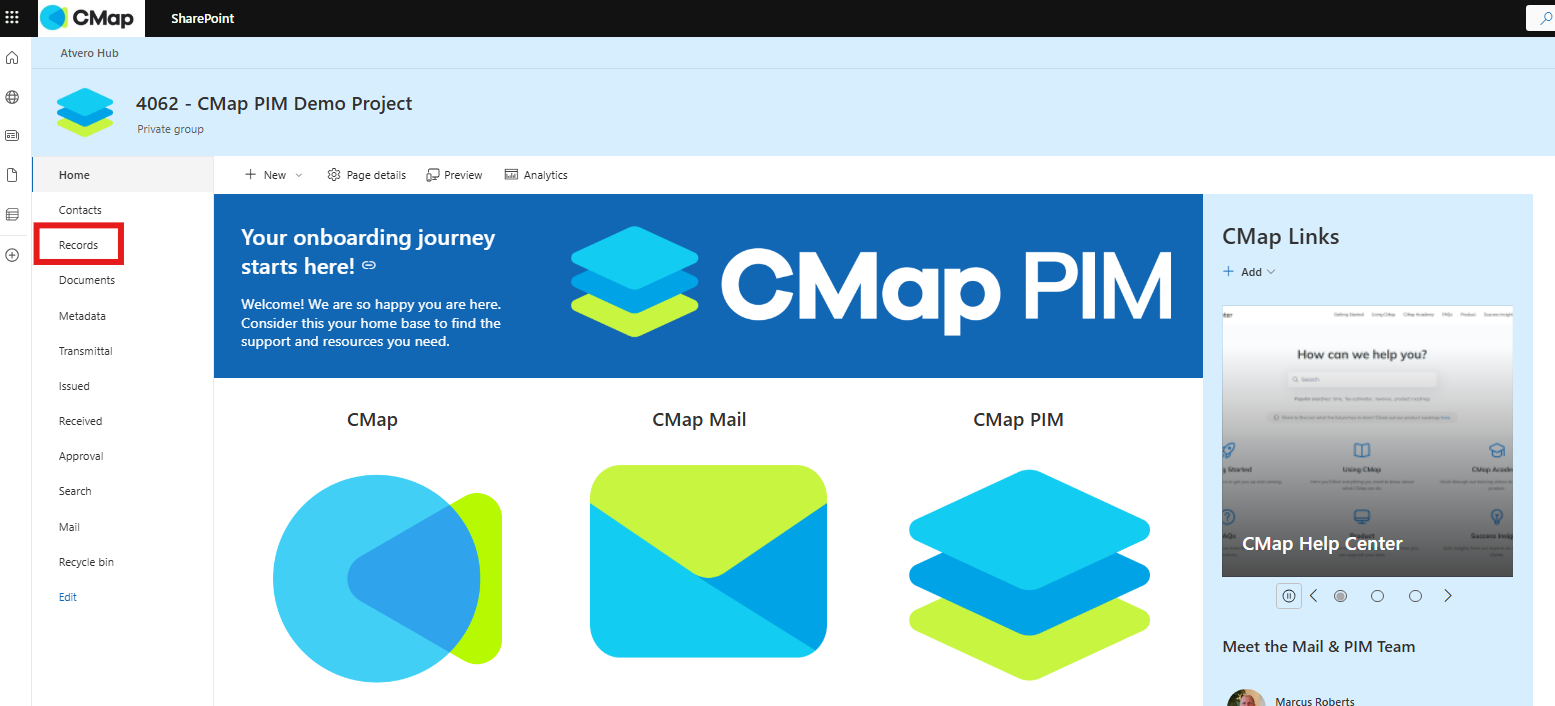

You can also approve revisions directly in the revision list, if you need to approve something quickly. Inside your project, click the Records menu item in the led side bar menu.
Approval

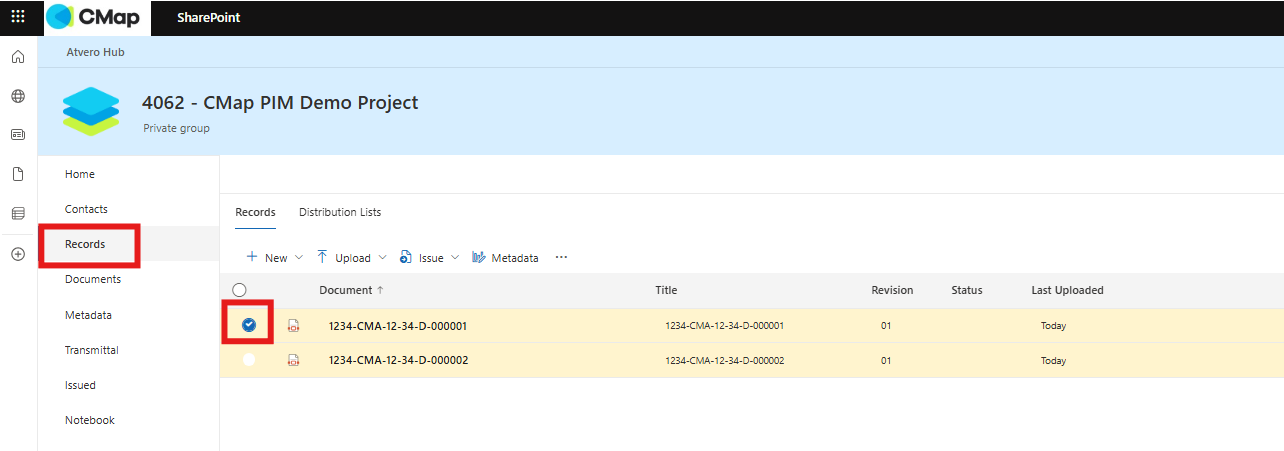

To open the information panel for a record, click the row of the record you want to approve a revision for.

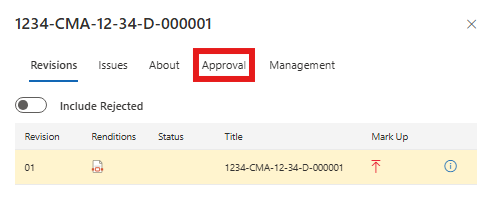

Then click the Approvals tab in the information panel to view a list of the revisions awaiting approval.
Records where the last revision is pending will appear as yellow in the records list.
You can use the Filters panel to find specific revisions more easily.
Only project owners will be able to approve or reject revisions, by default.
Approving a Revision from Records > Approval

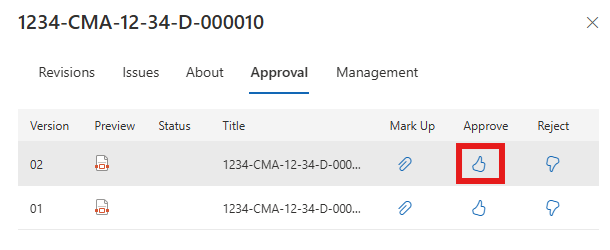

To approve a revision, click the Approve symbol in the row of the revision you wish to approve . You will then be prompted to confirm your approval. Approving a revision cannot be undone.
Rejecting a revision

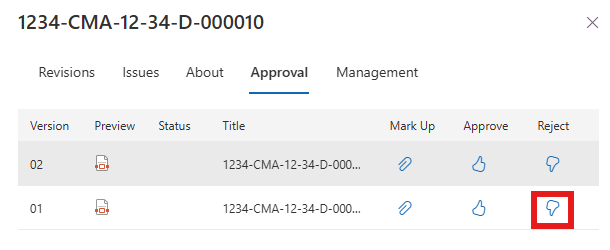

To approve a revision, click the Reject symbol in the row of the revision you wish to reject . You
will then be prompted to confirm your rejection.
