Update Layout Names in AutoCAD

  • Updated



Update Layout Names

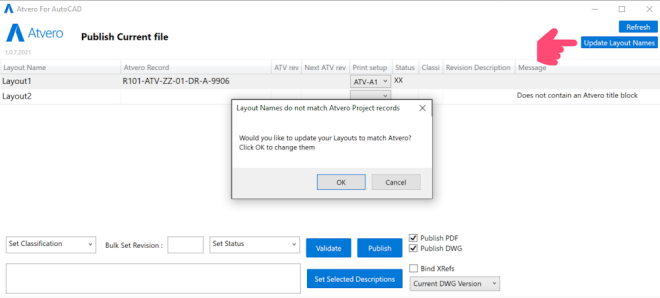

If you click 'Update Layout Names' the add-in will change the Layout name to match the Record in CMap PIM.



No Revision Block



If there is no blank Revision Block in the Layout you will need to add one.

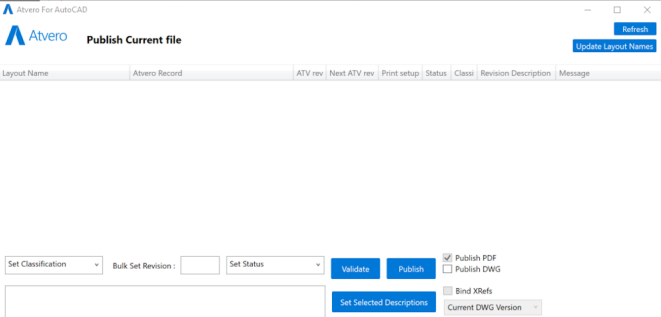

Project Error




If: 1.you are not connected to a windows account with membership of a valid CMap PIM Project,

2.The Atvero.Project attribute isn't correctly set.....then you will receive a project error. Check the configuration before you can proceed.
